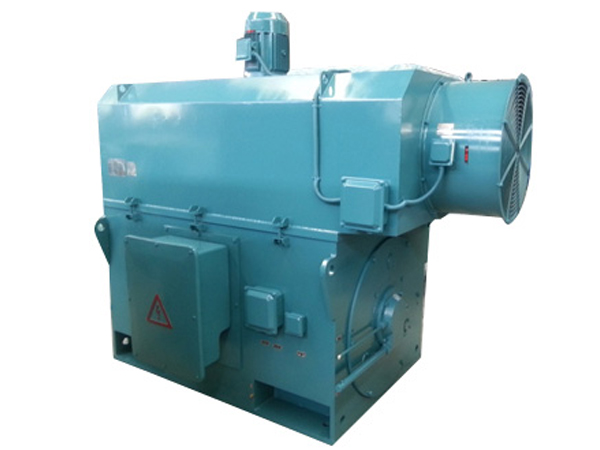

YP, YPKK 系列10kV (H355~630)中型高压变频三相异步电动机

商品编号:

产品品牌:品牌一

产品类型:类型一

产品颜色:

点击次数:1197

上架时间:2021-09-07

全国服务热线:13663288881

我要询价

产品描述


 概述  Summary
 额定功率:200~2240kW   Rate power: 200~2240kW
 额定电压:10kV  Rate voltage: 10kV
 机座号: 450~630 Frame size: 450~630
 极数:4、6极(可生产8~12极)   Poles:  4, 6p (or 8~12极p)

 防护等级:YP系列:IP23

 YPKK系列:IP54、IP55

 Protection degree: YP series: IP23
 YPKK series: IP54, IP55

 冷却方式:YP系列:IC06

  YPKK系列:IC666

 Cooling method:  YP series: IC06
 YPKK series: IC666

 调速范围:恒转矩:5~50Hz

 恒功率:50~67Hz

 Frequency range: constant torque: 5~50Hz
 constant power: 50~67Hz

  结构特点  Structural characteristics
  该系列电动机采用箱式钢板结构,采用高压变频器供电以达到无极调速的功能,电机通风罩或冷却器采用强制风冷的结构,确保电机在低频运行状态下的通风散热;电机轴承采用绝缘结构,减小了轴电流对轴承的损伤,提高了轴承寿命。该产品具有高效节能、低噪音、振动小、调速范围广、 度高和高可靠性等优点,可驱动各种通用机械如风机、水泵、压缩机、矿山机械等,被广泛应用于电站、钢厂、矿山等工矿企业中。
This series motors with box type steel structure, can be ajusted its speed using high voltage inverter; Forced cooling structure for the cooler or protective cover, ensure the cooling effect of motor under low frequency operation; Insulation structure for bearing, reduce the damage from shaft current and improve the life of bearing. This series motors have characteristics of high reliability, wide speed range, high precision, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, mining machinery, engineering machinery installed in power plant, steel mill, mine and so on.


风罩或冷却器采用强制风冷的结构,确保电机在低频运行状态下的通风散热;电机轴承设计为端盖式滑动轴承,采用稀油站强迫润滑。当电机功率超过2000kW时,可根据用户要求,多配一副出线盒,用于引出三相绕组中的中性点。该产品具有高效节能、低噪音、振动小、调速范围广、 度高和高可靠性等优点,可驱动各种通用机械如风机、水泵、压缩机、矿山机械等,被广泛应用于电站、钢厂、矿山等工矿企业中。
This series motors with box type steel structure, can be ajusted its speed using high voltage inverter; Forced cooling structure for the cooler or protective cover, ensure the cooling effect of motor under low frequency operation; Sliding bearing is installed and forced lubricated by lubricating station. When the power is more than 2000kW, according to the requirement of customer, another terminal box can be installed to pick up the neutral point of winding.
This series motors have characteristics of high reliability, wide speed range, high precision, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, mining machinery, engineering machinery installed in power plant, steel mill, mine and so on
