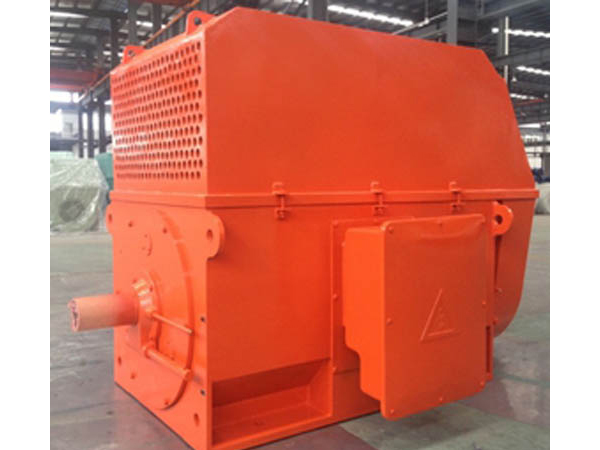

YX, YXKS, YXKK 系列10kV (H355~630)中型高压高效三相异步电动机

商品编号:

产品品牌:品牌一

产品类型:类型一

产品颜色:

点击次数:3972

上架时间:2021-09-07

全国服务热线:13663288881

我要询价

产品描述


 概述  Summary
 额定功率:200~2240kW   Rate power: 200~2240kW
 额定电压:10kV     Rate voltage: 10kV
 机座号:450~630  Frame size:  450~630
 极数:2~12极    Poles:  2~12p
 防护等级:YX 系列:IP23
                   YXKS、YXKK系列:IP55

 Protection degree: YX series: IP23

                               YXKS、YXKK series: IP55

 冷却方式:YX 系列:IC01

                   YXKS系列:IC81W

                   YXKK系列:IC611或IC616

 Cooling method: YX series: IC401

                            YXKS series: IC81W

                            YXKK series: IC611 or IC616

 能效等级:GB30254-2013 2级

 (≥355kW可享受 惠民产品补贴)

 Efficiency class: GB30254-2013 grade 2
  (≥355kW with state subsidies)



  结构特点  Structural characteristics
  该系列电机采用箱式钢板结构,拆下冷却器或防护罩即可观察和触及电机内部,便于电机的安装维护;定转子铁芯均采用低损耗高导磁的冷轧硅钢片;转子采用笼型铸铝转子,一次成型,也可根据客户需求生产铜条转子,提高了运行可靠性;定子采用F级绝缘真空压力浸渍无溶剂工艺处理(VPI),使电机具有可靠的绝缘性能和防潮、抗冲击能力;定子和轴承均装有PT100测温元件,电机轴承均有不停机注油和排油装置,提高了电机自身的保护能力和运行效率。
This series motors with box type steel structure, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; Rotor and stator are all made from low loss and high magnetic conductivity silicon steel; The cage structure rotor made by once forming process or copper strip rotor made by mid-frequency welding process, improve the reliability of the motor; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling pipe and oil exit pipe, improve the protection ability and operation efficiency of the motors.
